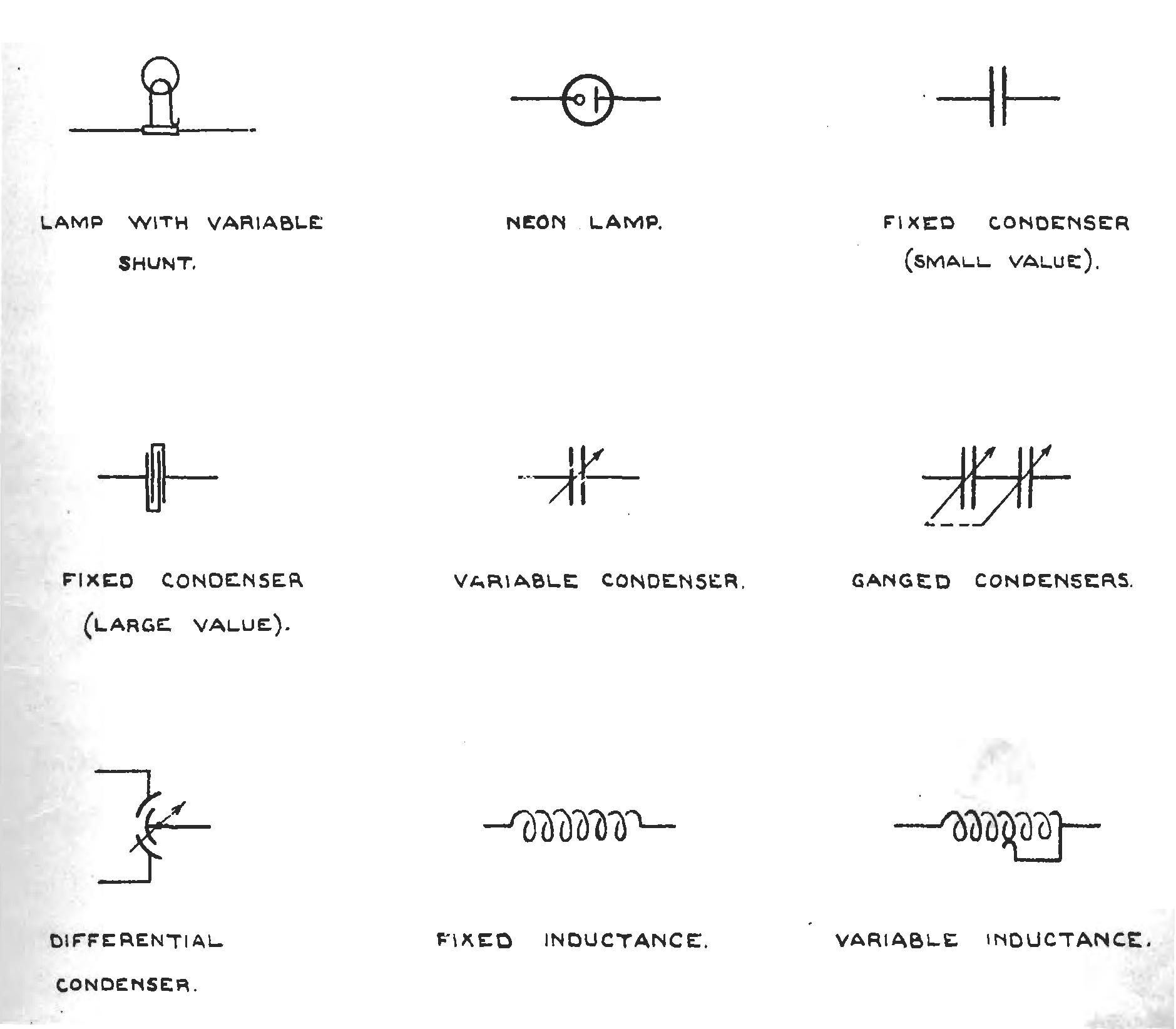

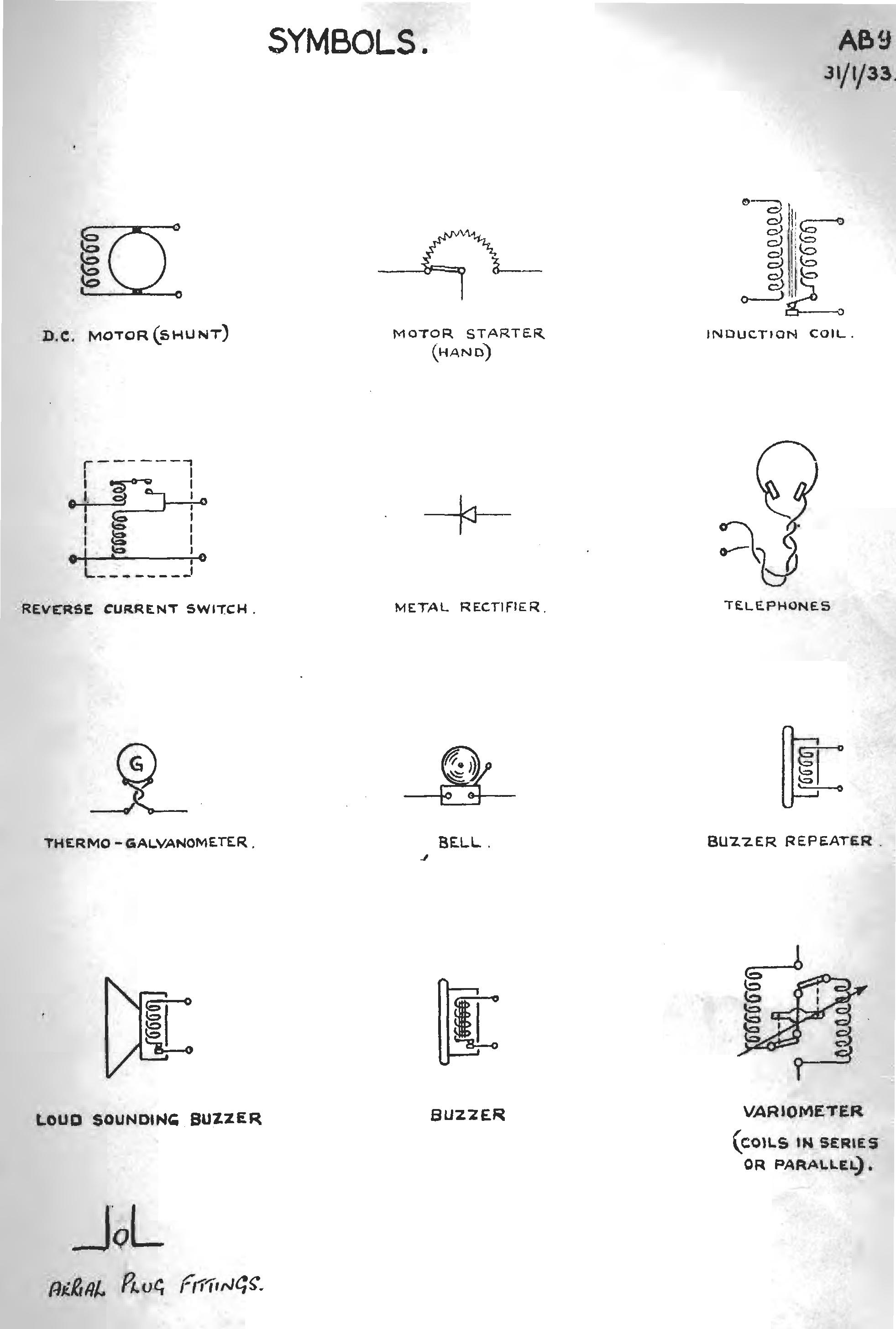

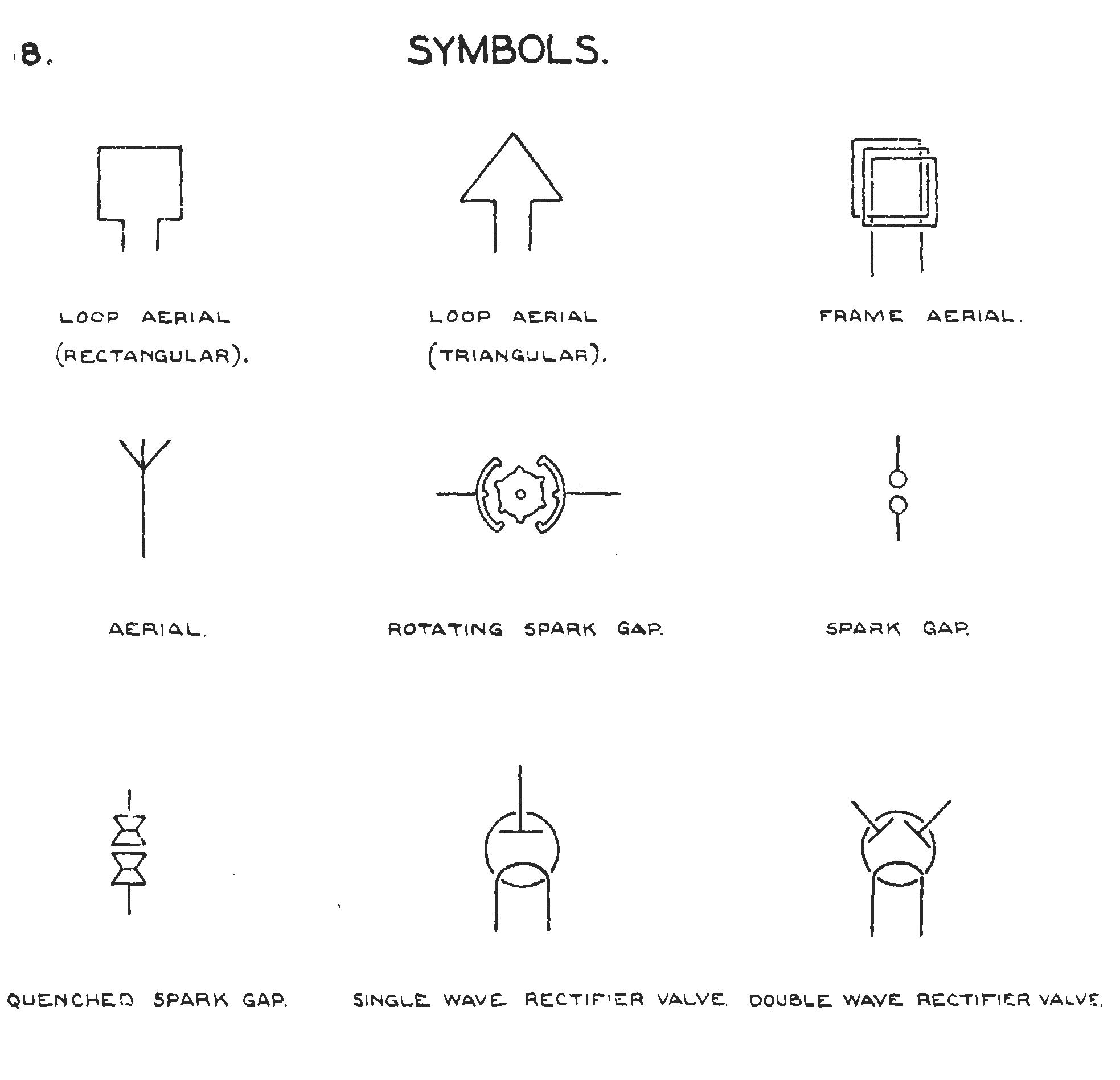

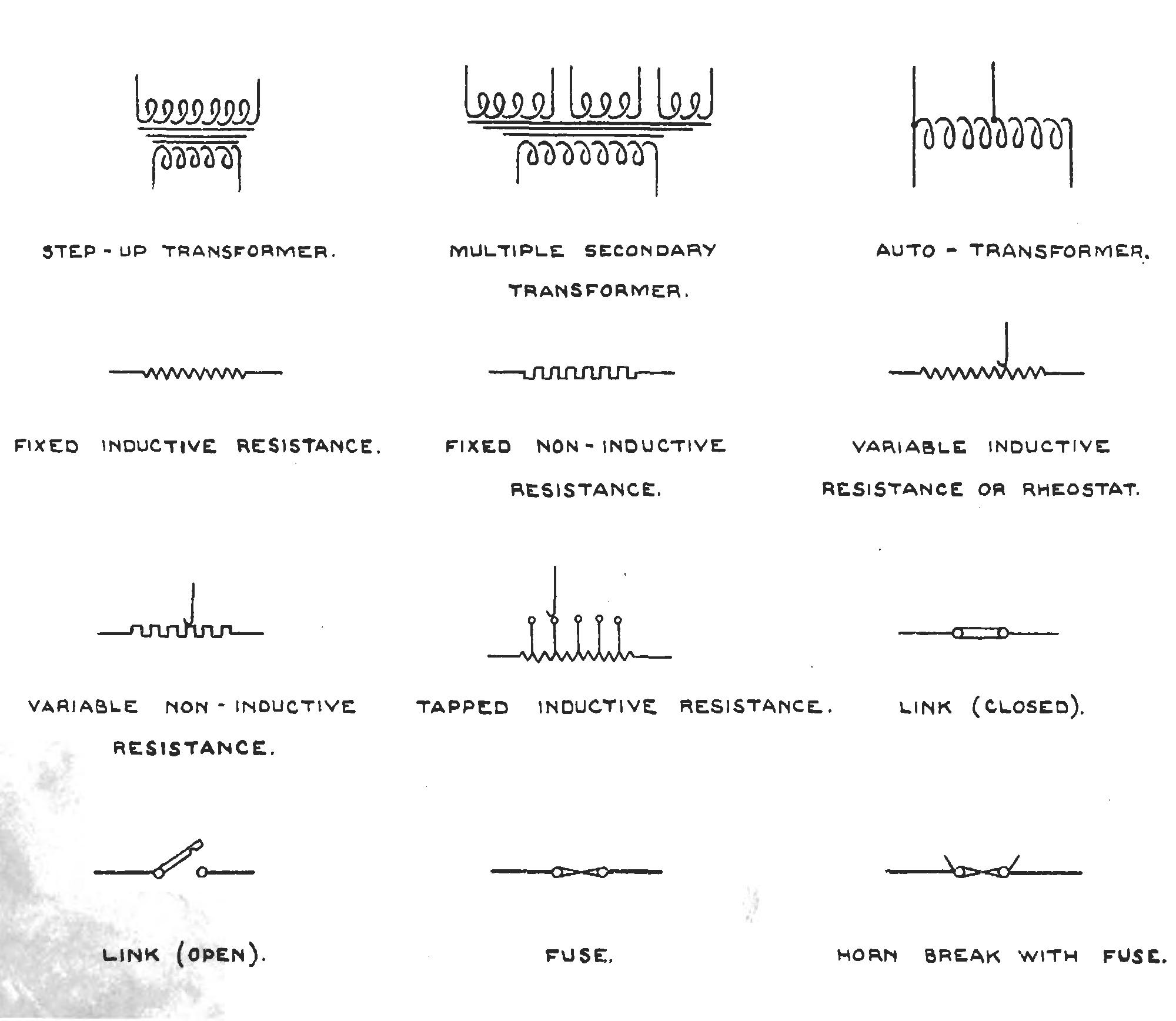

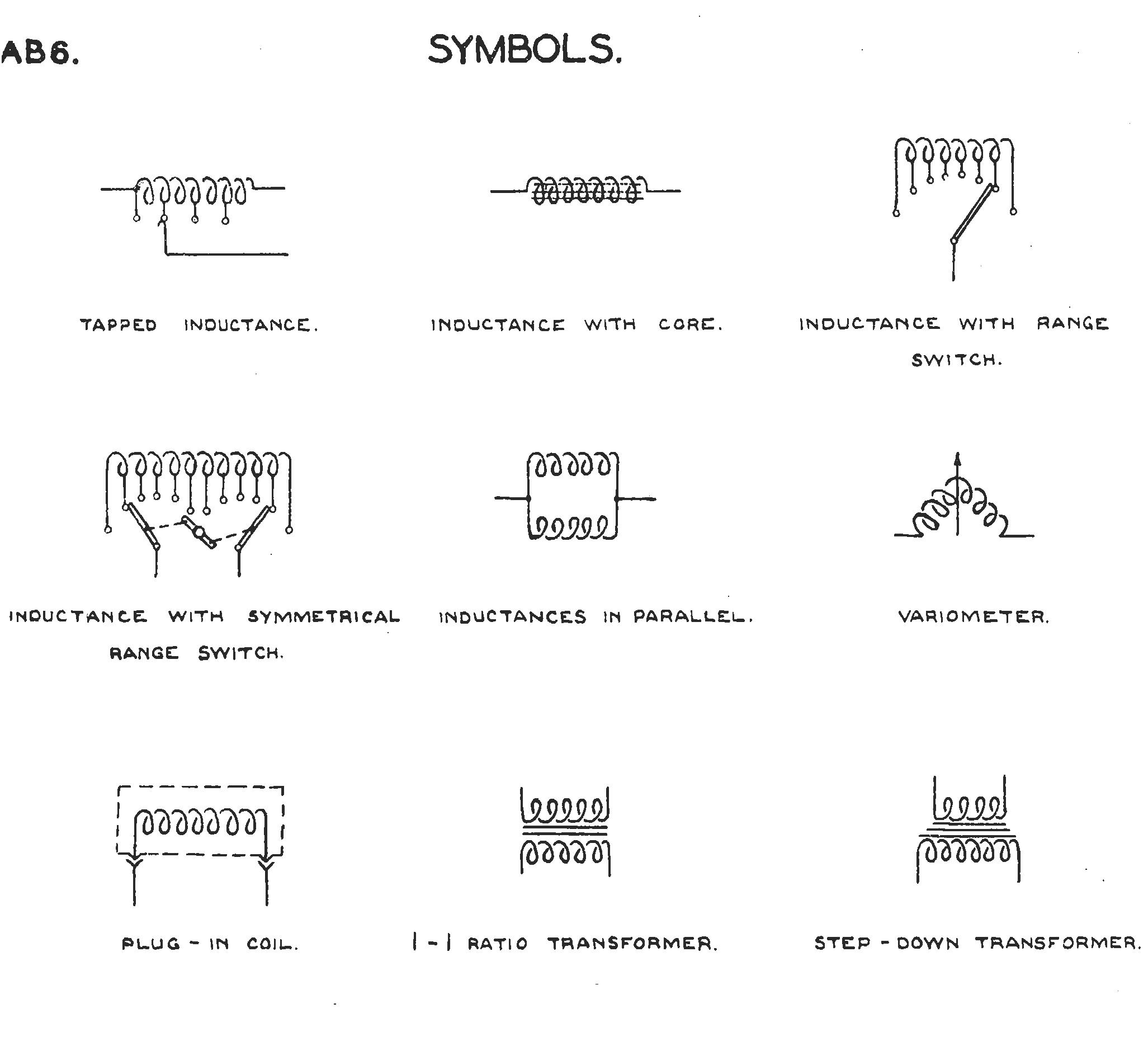

SYMBOLS - PRE 1930s

Written by Godfrey Dykes

© RN Communications Branch Museum/Library

Click on an image to enlarge it

If you wish to see the original larger scans then CLICK HERE

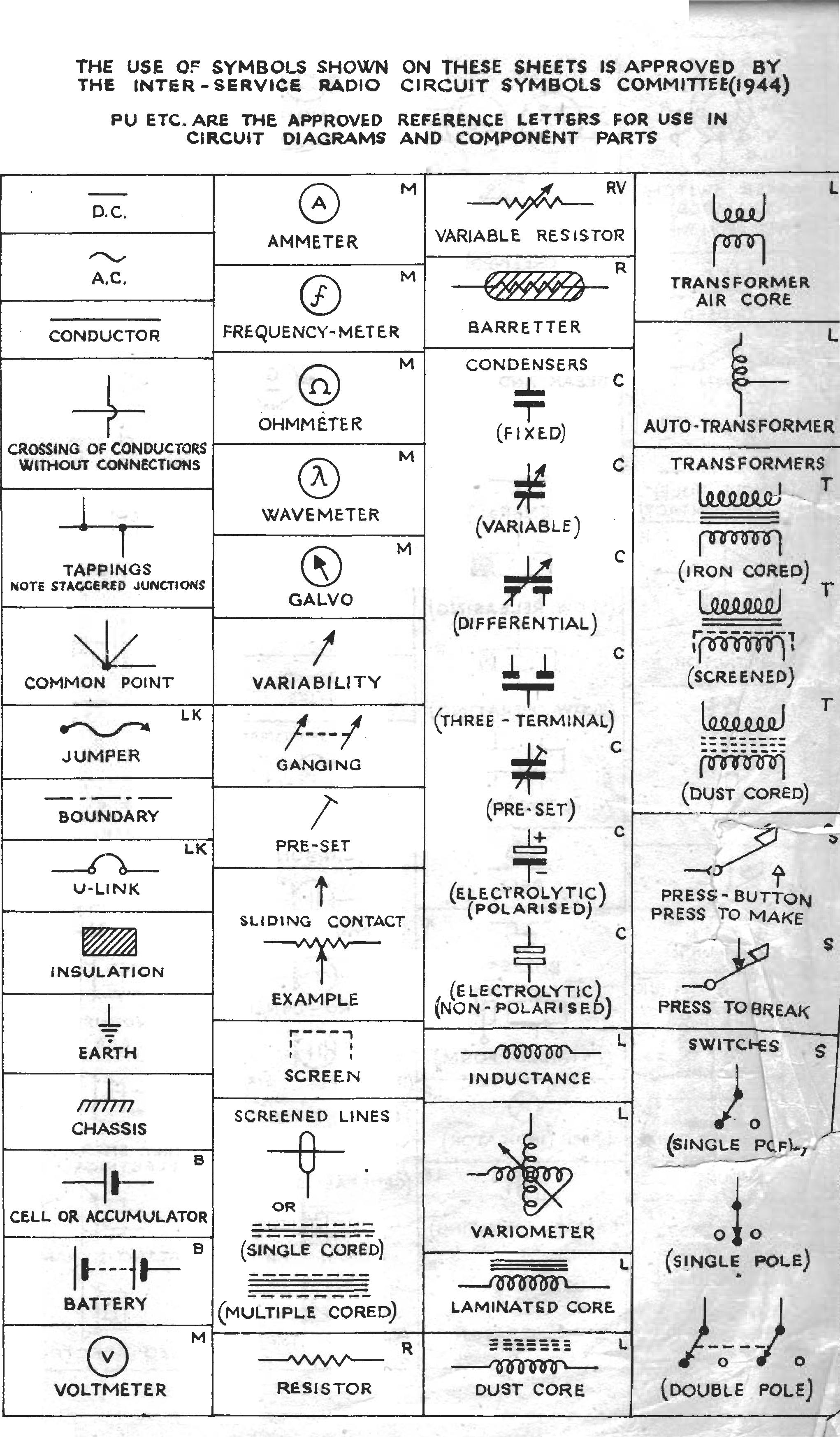

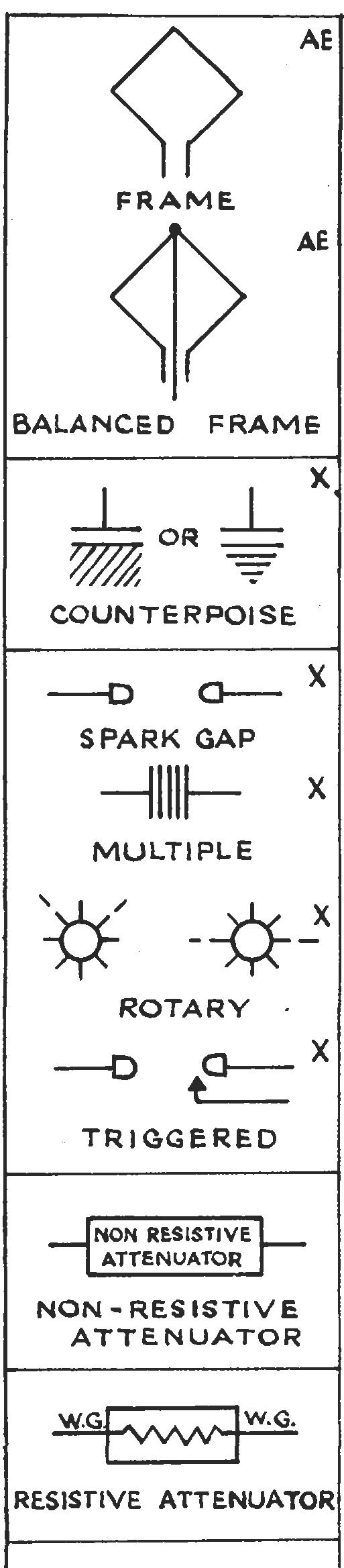

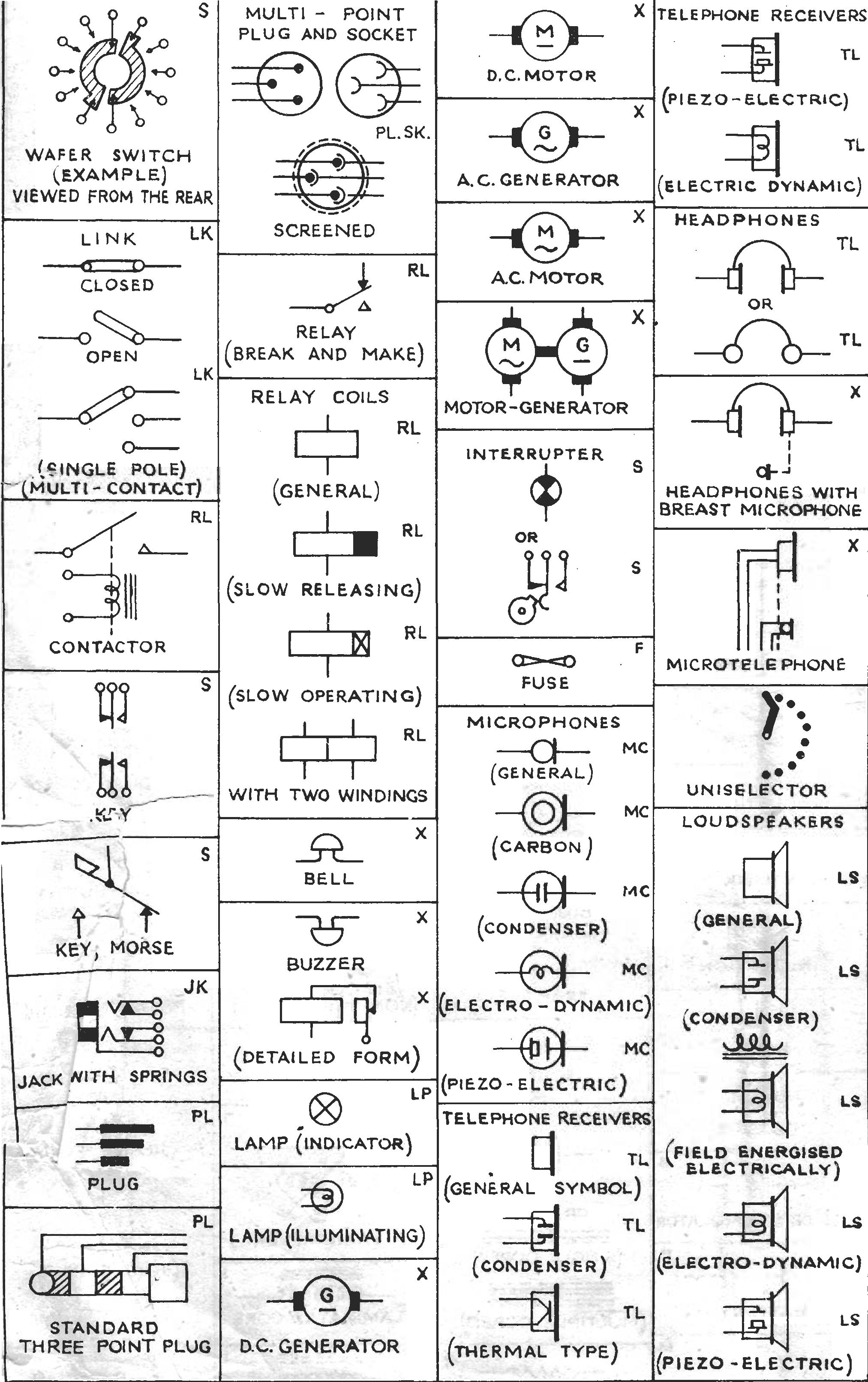

1930 to 1970

If you wish to see the original larger scans then CLICK HERE

1970 onwards

If you wish to see the original larger scans then CLICK HERE
