B40 Circuit Diagrams

by Ken Sutton

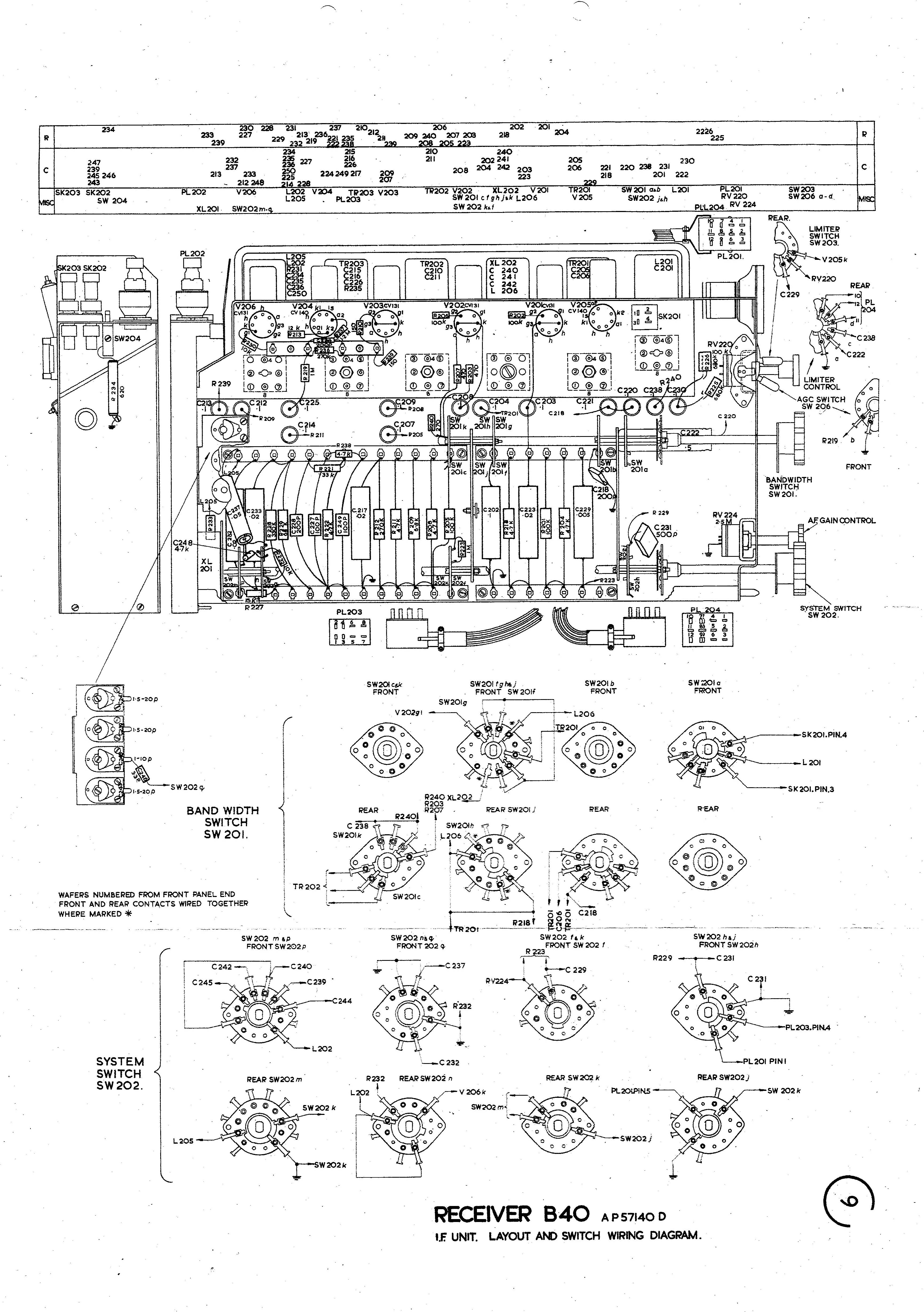

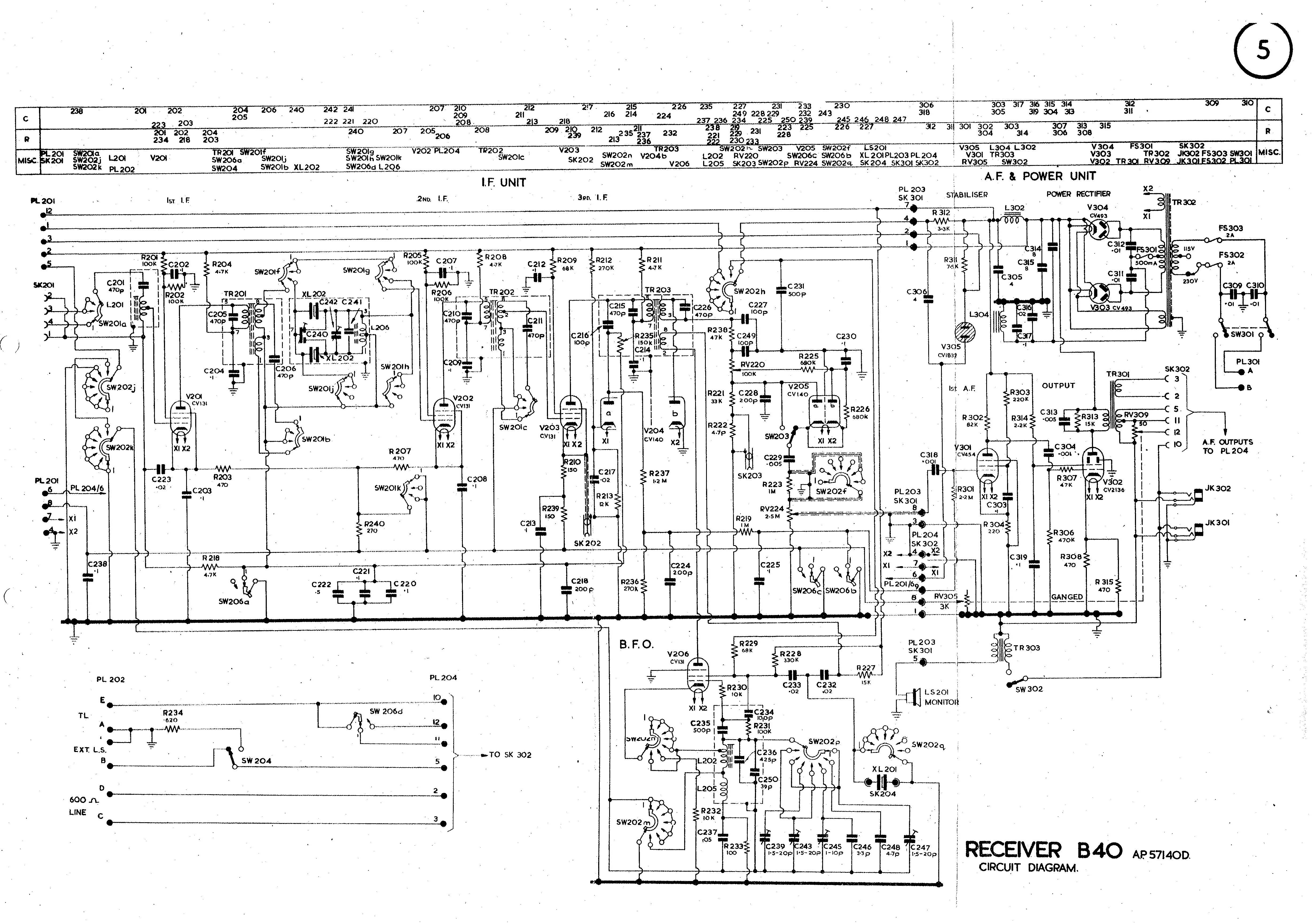

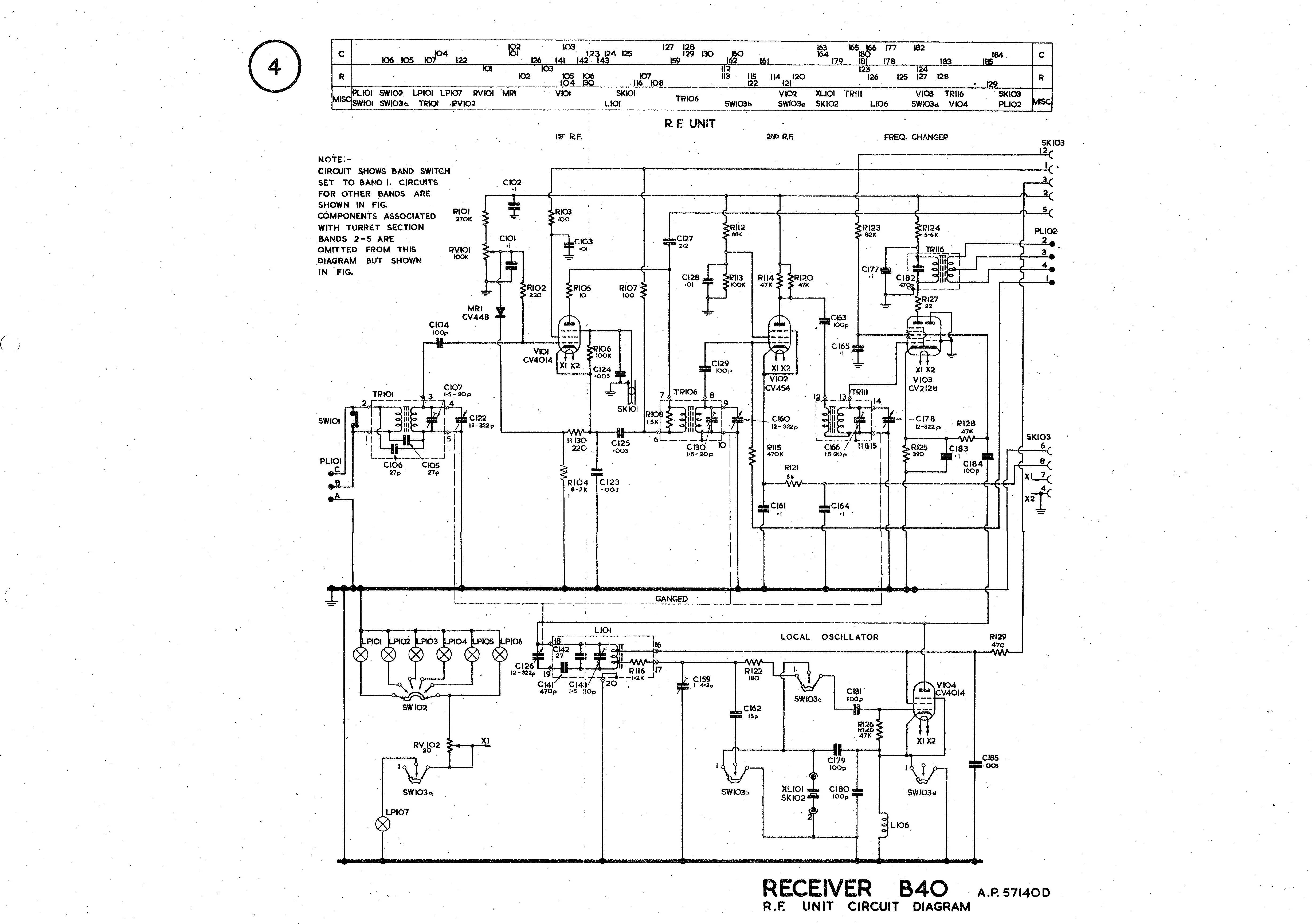

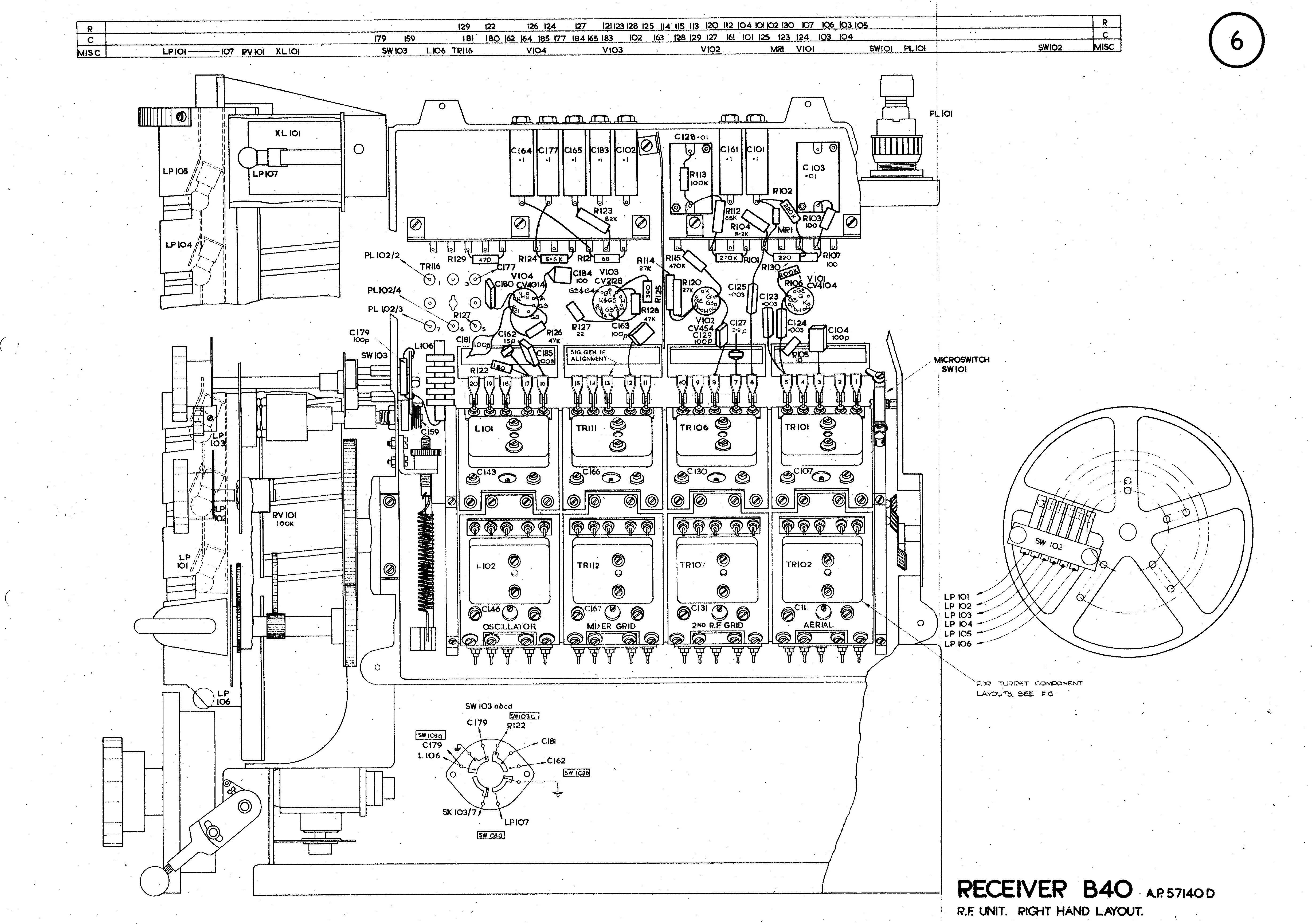

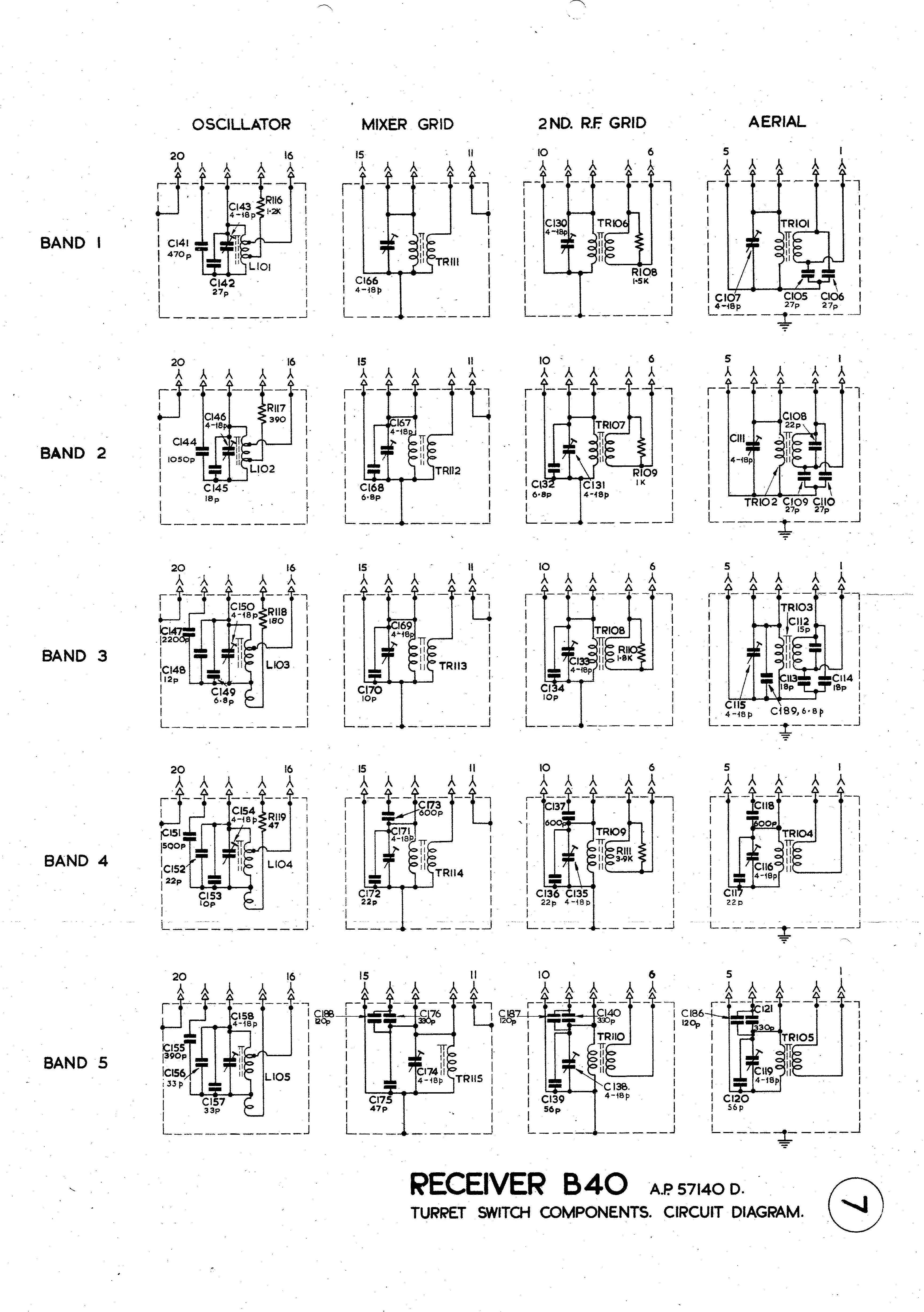

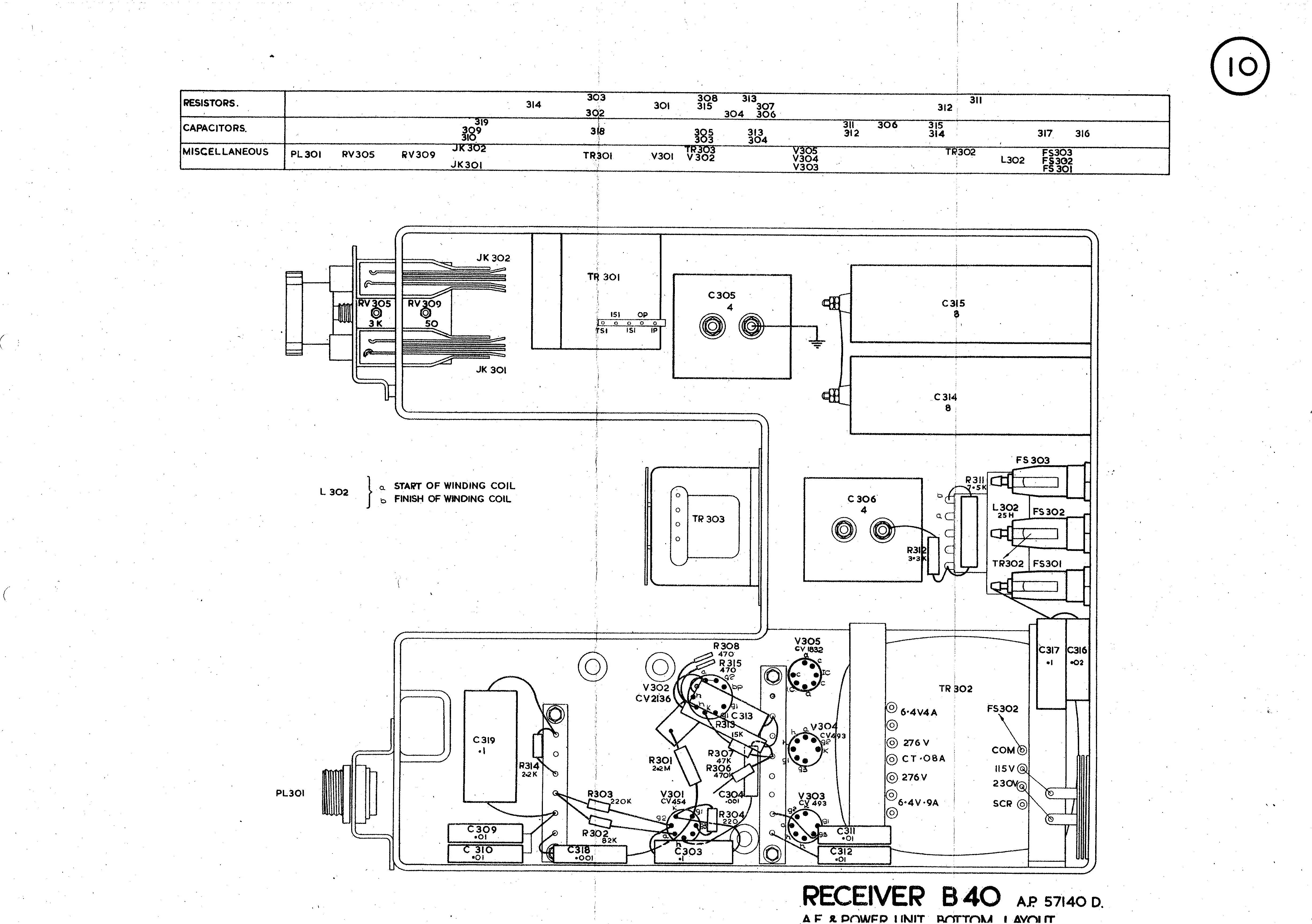

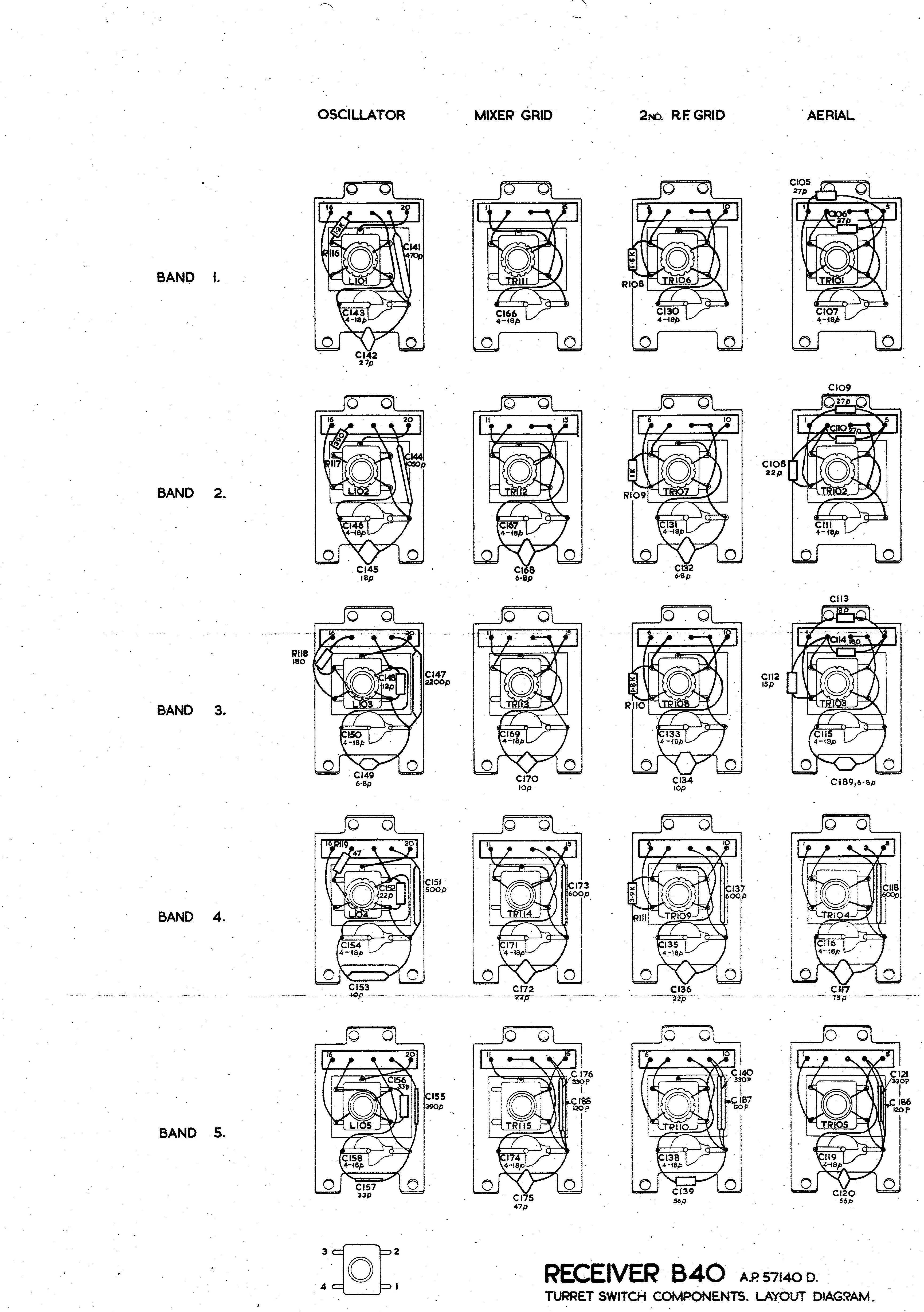

The following circuit diagrams are produced in support of ASRE NOTE 4/55 RECEIVER B40 (AP 571400). The diagrams have been scanned in A3 size and it is recommended you print them in their original size.
